ETP-H Models - ETP BUSHINGS & POSI-LOCK - MIKI PULLEY VIETNAM

Shaft and hub are strongly coupled by pumping oil into the sleeve under pressure to move the wedge of the built-in taper piston.The oil used for coupling is only necessary for moving the piston, so after coupling is achieved, the pressure is released and the taper piston is held in place by the wedge effect.

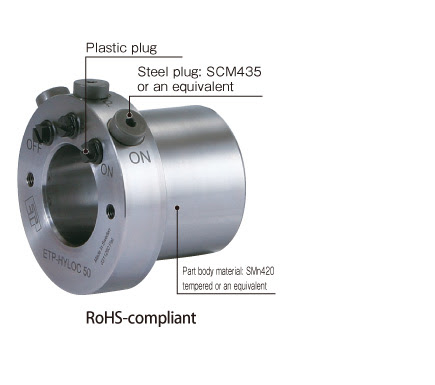

ETP-H

ETP-H Models,*Made to order

[Specifications]

Model	Rated torque ［N・m］						Rated thrust ［N］						Moment of inertia ［kg・m2］	Mass ［kg］
	Oil pressure: 60 MPa		Oil pressure: 80 MPa		Oil pressure: 100 MPa		Oil pressure: 60 MPa		Oil pressure: 80 MPa		Oil pressure: 100 MPa
	Shaft tol. h7	Shaft tol. h8	Shaft tol. h7	Shaft tol. h8	Shaft tol. h7	Shaft tol. h8	Shaft tol. h7	Shaft tol. h8	Shaft tol. h7	Shaft tol. h8	Shaft tol. h7	Shaft tol. h8
ETP-H-50	800	800	1600	1400	2600	2400	30000	30000	55000	55000	70000	70000	3.2×10-3	2.4
ETP-H-60	1100	1100	3300	3000	4600	4300	60000	60000	100000	100000	130000	130000	5.4×10-3	3.1
ETP-H-70	2400	2400	5800	5300	7900	7400	100000	95000	150000	150000	210000	200000	8.7×10-3	4.1
ETP-H-80	5600	5300	9000	8400	12100	11500	150000	135000	220000	210000	290000	280000	14×10-3	5.4
ETP-H-90	8300	7400	12700	11800	17100	16200	185000	165000	285000	265000	380000	360000	23×10-3	7
ETP-H-100	12100	11000	18200	17100	24200	23100	245000	220000	365000	340000	485000	460000	34×10-3	8.6
ETP-H-110	16800	15400	24800	23500	32900	31500	305000	280000	450000	430000	595000	570000	51×10-3	11
ETP-H-120	22300	20600	32700	31100	43200	41600	370000	345000	545000	520000	720000	690000	76×10-3	14
ETP-H-130	27200	24900	40500	38100	53800	51400	420000	385000	620000	590000	825000	790000	110×10-3	17
ETP-H-140	35600	32900	52300	49600	68900	66200	510000	470000	750000	710000	985000	945000	150×10-3	21
ETP-H-150	44500	41400	65000	61900	85400	82300	595000	550000	870000	825000	1135000	1095000	210×10-3	25
ETP-H-160	54800	51200	79500	76000	104000	100000	685000	640000	995000	950000	1305000	1260000	290×10-3	30
ETP-H-180	80000	75000	115000	110000	150000	146000	890000	835000	1280000	1220000	1675000	1625000	500×10-3	42
ETP-H-200	109000	103000	157000	151000	206000	200000	1090000	1030000	1570000	1510000	2060000	2000000	830×10-3	56
ETP-H-220	144000	137000	209000	201000	273000	266000	1310000	1245000	1900000	1830000	2485000	2415000	1300×10-3	73

*The maximum rated torque values are those when the thrust is zero and the maximum rated thrust values are those when the torque is zero.

[Dimensions]

Unit ［mm］

Model	d	D	D1	L	L1	P.C.D.B	M
ETP-H-50	50	77	101	57	82	75	M8
ETP-H-60	60	89	113	65	90	86	M8
ETP-H-70	70	102	122	75	100	96	M8
ETP-H-80	80	115	135	85	110	107	M8
ETP-H-90	90	128	148	95	120	124	M12
ETP-H-100	100	140	160	105	130	140	M12
ETP-H-110	110	154	173	115	140	150	M12
ETP-H-120	120	168	186	125	150	160	M12
ETP-H-130	130	182	200	135	160	175	M16
ETP-H-140	140	196	213	145	170	185	M16
ETP-H-150	150	210	227	155	180	195	M16
ETP-H-160	160	224	240	165	190	205	M16
ETP-H-180	180	252	267	185	210	223	M16
ETP-H-200	200	280	293	205	230	247	M16
ETP-H-220	220	308	320	225	250	280	M16

*The port (for connecting the radial thrust hose) is G1/8.
