SD stand-alones - Miki Pulley Vietnam

These are stand-alone models that come in outer diameter sizes of 28, 38, 53, and 75.Sizes 28 and 38 have integrated handles and are used mounted directly on the rotation shaft. Sizes 53 and 75 either allow the customer to design their own handle or come in a set with a handle. Both types may have either one or two indicator needles. Select from a large assortment of rotation ratios to meet your specific needs.

SD Stand-alone Models

[Specifications]

Model	Structure	Number of needles	Rotation ratio	Mass [g]
SD-28A	Weight Type	1	1/4	60
SD-28B	Weight Type	2	1/4	60
SD-38A	Weight Type	1	1/4, 1/9	100
SD-38B	Weight Type	2	1/4, 1/9	100
SD-53A	Weight Type	1	1/4, 1/5, 1/6, 1/9, 1/12, 1/16, 1/25	75
SD-53B	Weight Type	2	1/4, 1/5, 1/6, 1/9, 1/12, 1/16, 1/25	75
SD-75A	Weight Type	1	1/4, 1/5, 1/6, 1/9, 1/12, 1/16, 1/25, 1/36, 1/40, 1/49, 1/64	135
SD-75B	Weight Type	2	1/4, 1/5, 1/6, 1/9, 1/12, 1/16, 1/25, 1/36, 1/40, 1/49, 1/64	135

*The scale dial is available for all types with clockwise (R type) or counterclockwise (L type) direction.

*Weight type: Turning the handle (case) moves the needle in the same direction as the turning direction of the handle.

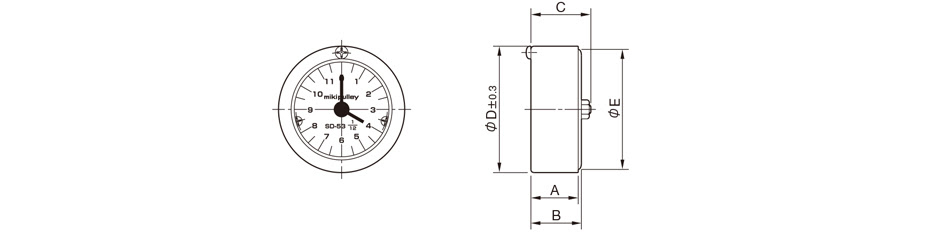

[Dimensions] SD-53/-75

Unit[mm]

Model	A	B	C	D	E	Mass [g]
SD-53□-□□	20	21.5	25	53.9	52.2	75
SD-75□-□□	18	22	25	75.3	73.5	135

[Dimensions] SD-28/-38

Unit[mm]

Model	A	H	K	J	M	D	Mass [g]
SD-28□-□□	28	12	40	7	2-M6	10	60
SD-38□-□□	38	15	43	8	2-M5	10	100

*The knurled pattern is straight for SD-28 and criss-cross for SD-38.
